Karma POV 11BW ZP

Traditional Karma gas-fired instantaneous heaters are particularly economical because they only heat water when you need it.

Karma POV11 BW

The heater has a closed flue gas cycle with the intake of combustion air from the outside environment. It can be safely installed in small rooms or bathrooms. Provides water for one or more points of use at the same time (bathroom + kitchen). Saves gas consumption. Gas consumption is only when heating water, which is supplied to the system instantly in a volume of up to 11 litres.

0,00 € without VAT 0,00 € including VAT

The heater has a closed flue gas cycle with the intake of combustion air from the outside environment. It can be safely installed in small rooms or bathrooms. They provide water for one or more points of use at the same time (bathroom + kitchen). Saves gas consumption. Gas consumption is only when heating water, which is supplied to the system instantly in a volume of up to 11 litres.

  • Forced exhaust: The heater flue gases are exhausted to the outside, while combustion air is supplied through a separate pipe.
  • The operation of the heater is completely closed off from the room and therefore safe.
  • Start-up at very low water pressure: The water pressure required to start the heater is as low as 0.02 MPa and is therefore sufficient for almost all types of installation.
  • Protection in case of loss of flame: The heater automatically cuts off the gas supply if the flame is accidentally extinguished during operation, thus preventing leakage.
  • Continuous water-gas control: The water heater will automatically stop combustion and shut down from operation if the water supply is interrupted or the water valve is closed.
  • Overpressure protection: If the water pressure is too high, the water heater safety valve can automatically reduce the pressure to prevent damage to the heater.
  • Practical removable water filter: For areas with poorer water quality, an easily removable water filter can be used.
  • Easy and convenient water temperature adjustment. Water temperature stability automatically ensured. Setting range 35°C - 65°C.
  • Improved closed combustion chamber: Uses continuous combustion control to control ideal combustion with high energy efficiency while ensuring safety and energy savings.
  • Audible alarm function (button press, possible malfunction)
  • Standard colour - white
  • Control panel, LED display
  • Water flow indicator
  • Burning indicator light
  • Fan run indicator (flue gas extraction)
  • The instantaneous heaters are manufactured using natural gas
  • The instantaneous water heater must be installed by technicians,
9,5 / 19,4 kW
1,13 / 2,23 m³/h
8.00 / 14,00 l/min
Weight (kg)13,4
135
A
60 / 100 mm
4 m
1 ks
IPX4
230 V

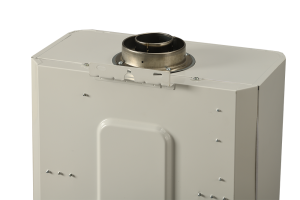

The original pipework supplied by the manufacturer must be used without fail. The dimensions of the pipe are 60 mm in diameter for the flue gas exhaust and 100 mm for the combustion air intake.

Flue system W 60/110 (extension) - max. length of flue system

POVDL 500 - pipe 0.5 m

POVDL 1000 - pipe 1.0 m
